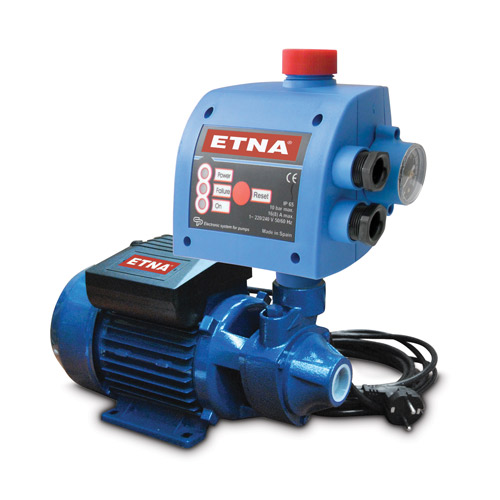

ETNA MINI HIDRO Series

DOCUMENTS

• Automatic water booster systems.
• The pressure control unit minimizes the  possibility of dry running of the pump with the
flow sensor it contains and protects the pump.
• The balance tank eliminates the need for maintenance and repairs.

PUMP FEATURES
Pump Body Cast Iron
Impeller Brass
Shaft Stainless Steel
Seal Mechanical
TECHNICAL FEATURES
Flow Rate 0,8 - 1,5 m³/h
Head 28-38 mwc
Max. Operating Pressure 10 Bar
Temperature of Pumped Liquid 0-50 ˚C
Power Supply 1 ~ 220 V, 50 Hz
