Mobile Diesel Fire Pump

Mobile Diesel Fire Pump

DOCUMENTS

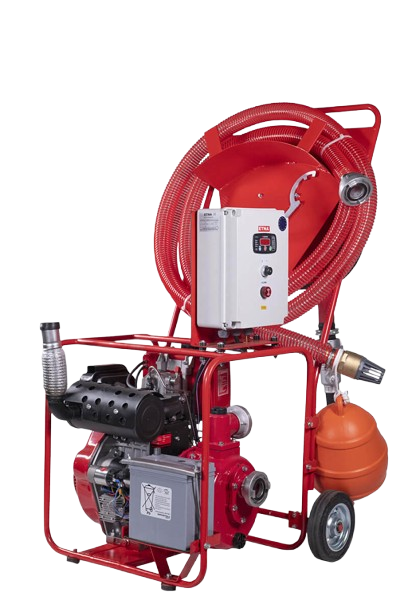

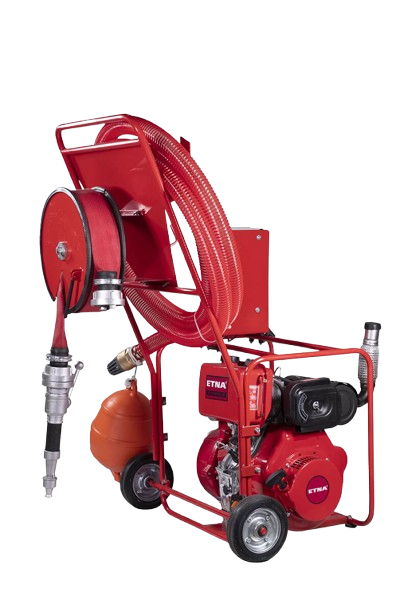

Diesel fire pump with a capacity of 60m - 10 ton per hour, self-priming centrifugal pump directly coupled with diesel engine, electrical starter, 5m suction hose, 20m fabric fire hose, fairlead inlet and outlet fast connection, water spray lance, wheeled mobile fire pump. Ability to deliver both water and foam if optional foam delivery mixer and foam lance are added.

PUMP FEATURES
Body Cast Iron
Fan Aluminum
Seal Mechanical
Inlet – Outlet Diameter 2''
Pump Capacity 10 m3/h – 6.0 Bar
Voltage 220-230V - 50 Hz
TECHNICAL FEATURES
Air-cooled engine 7.5-10 HP, 3600 rpm
Fuel Tank 5 L
